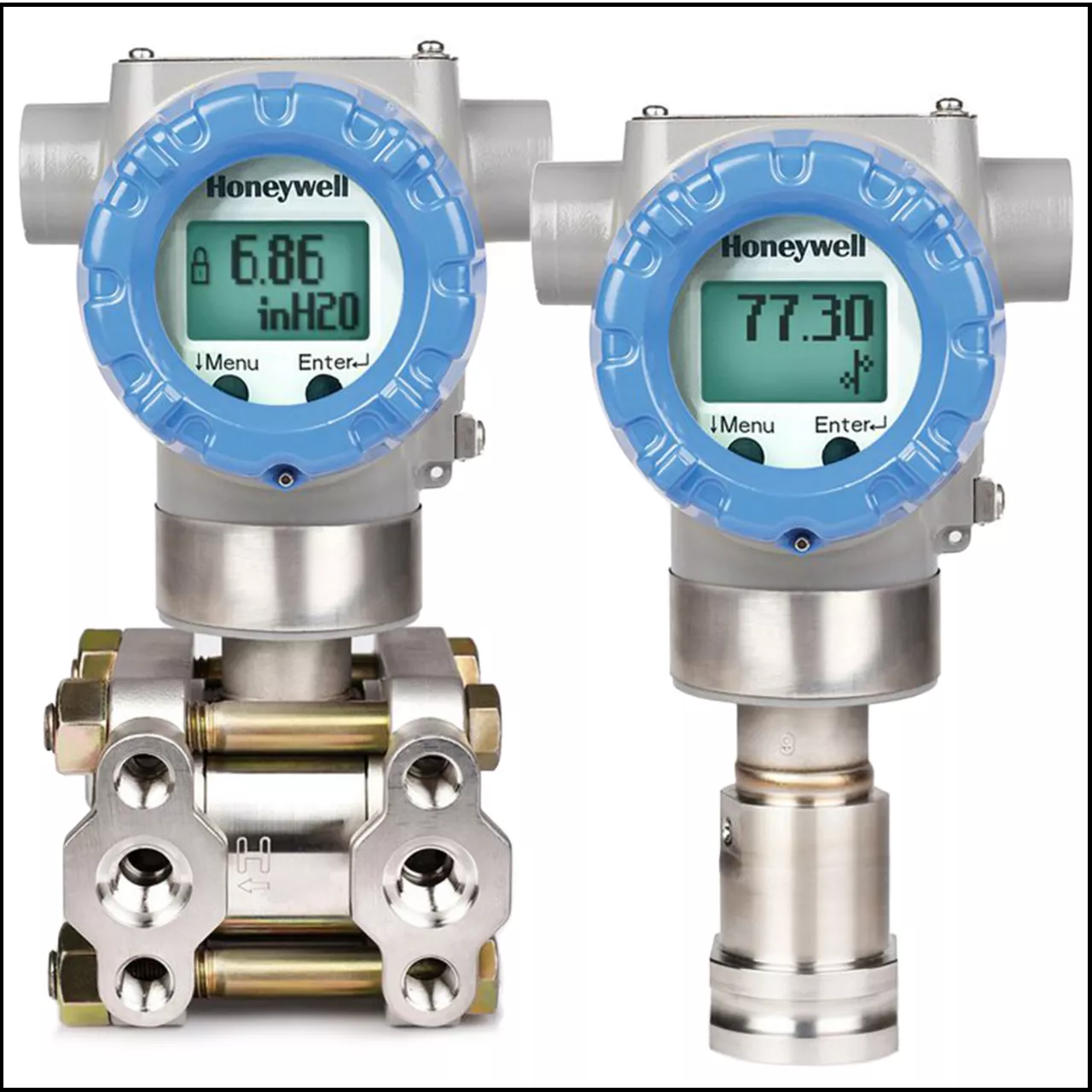

Pressure Transmitter Honeywell

A pressure transmitter is a mechanical device that measures the expansive force of a liquid or gaseous sample. Also known as a pressure transducer, this type of sensor is typically composed of a pressure sensitive surface area made of steel, silicon, or other materials depending upon the analyte's composition.

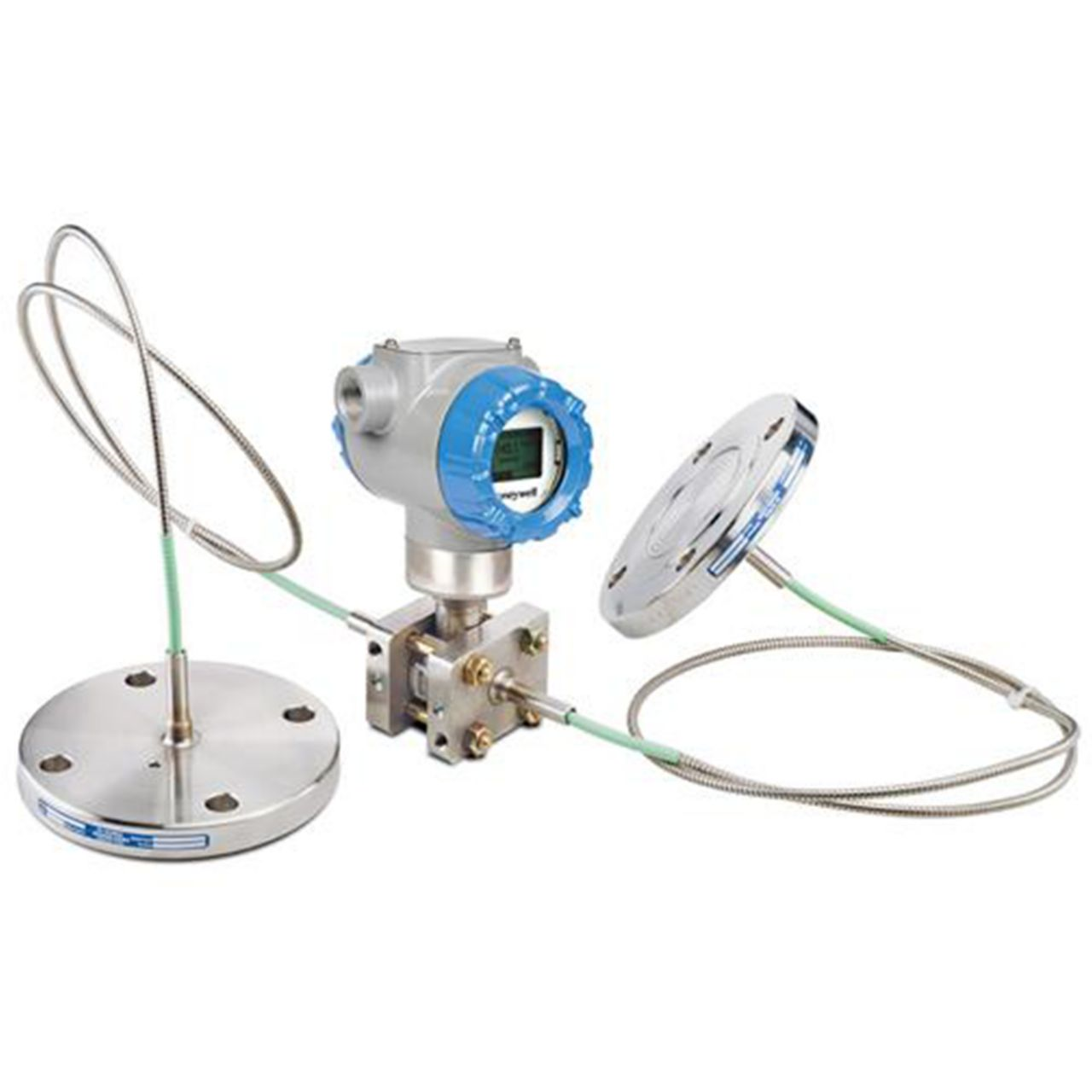

Part of the SmartLine® family of products, the STG700 Dual Head and STG700 Inline are suitable for monitoring, control and data acquisition. STG700 Dual Head products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications.

∎Features

  • Modular (may be added or removed in the field)
  • Supports HART protocol variant
  • 0, 90,180, & 270 degree position adjustments
  • Configurable (HART only) and standard (Pa, KPa, MPa, KGcm2, Torr, ATM, inH2O, mH2O, bar, mbar, inHG, FTH2O, mmH2O, mm HG, & psi) measurement units.
  • 2 Lines 6 digits PV (9.95H x 4.20W mm) 8 Characters
  • Square root output indication (√) and Write protect Indication
  • Built in Basic Device Configuration through Internal or External Buttons – Range/Engineering Unit/Loop Test /Loop Calibration/Zero /Span Setting
