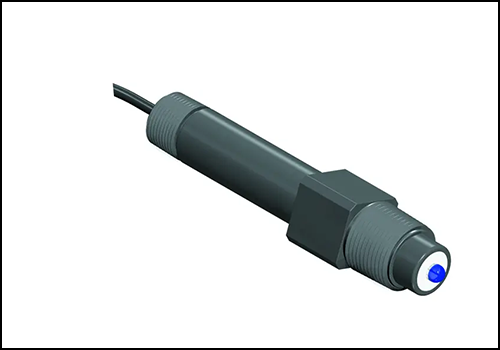

ST873 Submersion & In-Line DynaProbe pH and ORP Sensors
The ST873 is a rugged, sealed sensor assembly designed for in-line or submersion applications. The patented solid state reference cell features the unique IonTrap design for extended service life in the most severe applications. The body, with an integral 1” MNPT insertion thread, is molded from chemically resistant Ryton (PPS) and the reference junction is either porous Teflon or wood. Build-in temperature compensators are available. Optional sensor guard threads onto the front of the sensor and protects the sensor glass tip from impact. Sensor also available in ORP (Redox) version.
∎Technical Specification
pH Sensor Range | 0 - 14 |
pH ORP Sensor Range | 5000 mV |
Temp Range | 0 - 140º C |
Max Pressure/Temp | 150 psig at 120º C |
Reference | Ag-Agcl |
Wetted Materials | Ryton, Teflon or Wood, & Glass Std |
Cable Length | 10 feet |

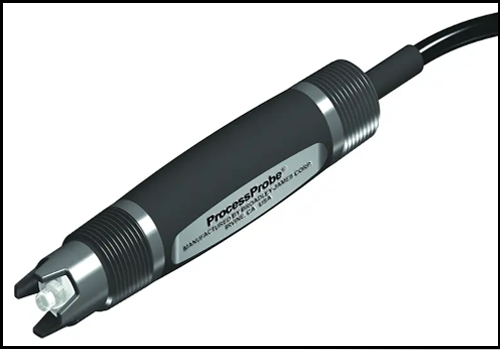

pH/ORP Sensor 3/4″ Threads & Guard
Broadley-James offers the widest range of autoclavable and steam sterilisable pH, redox and polarographic dissolved oxygen sensors available on the market today. Specifically designed for bioprocess applications, our sensors are characterized by high quality, stability and long life.
∎Technical Specification
pH Sensor Range | 0 - 14 |
Redox Range | ± 5000 mV |
Temp Range | 0 -105º C |
Max Pressure/Temp | 150 psig at 100º C |
Reference | Ag-Agcl |
Wetted Materials | Ryton, Teflon or Wood, & Glass Std |
Cable Length | 5 meters (15 Ft) |
Application | Built-in temperature compensation Built-in solution ground Choice of cable connectors Custom cable lengths |

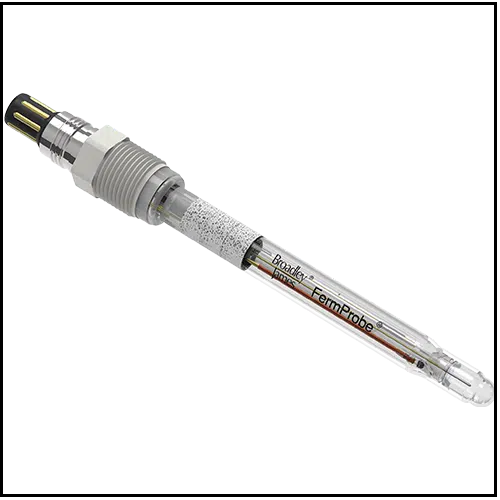

Steam Sterilizable pH/ORP Combination Electrode
The pH Fermprobe is a gel filled and sealed, pH combination electrode that is steam sterilizable to electrodes have 135º C and 30 psi. a built-in electrolyte salt bridge that protects the electrode from sulfide contamination, adverse reactions with protein materials, and broth diffusion into the reference junction. With the help of experts in the fermentation industry, a steam sterilizable pH combination electrode has been developed that combines requests for more rugged and more reliable probe with the need for a simple and easy to maintain design. This new electrode, the pH Fermprobe , has evolved from harsh industrial trials and feedback from the industry technicians who must work with these electrode systems on a daily basis.
∎Technical Specification
pH Sensor Range | 0 - 14 |
ORP Range | -1999 to + 1999 mV |
Diameter | 12 mm |
Temp Range | -5 deg to 135 deg Centigrade Thermoshock Resistant |
Pressure Range | 300 psi @ 25 deg C, 100 psi @ 37 deg C ,30 psi @ 135 deg C |
Bulb Glass Type | Ag-AgCl with Dual salt bridge electrolyte system |
Bulb Impedance | -200 Megaohm @25º C |
Reference | Ag47 double junction up system |
Cable Length | 10 FT (for F600 integral & for F615/635 separate) |
