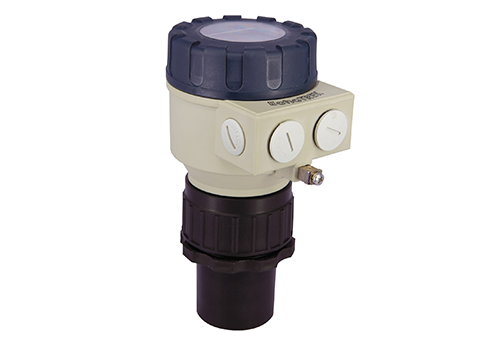

Ultrasonic Level Transmitter

∎PRODUCT PROPERTIES :

  • 2- or 4-wire transmitter
  • Non-contact level metering
  • Narrow 5° beam angle
  • Excellent signal processing
  • Temperature compensated
  • Secondary lightning protection
  • 32-point linearization
  • PP, PVDF, PTFE housing and transducers
  • Plastic, aluminum or stainless steel housing
  • For challenging applications such as vapor, fume, mixing blades, and light foam
  • 5 years warranty

    • ∎APPLICATIONS :

  • Level measurement of liquids and slurries
  • Agriculture
  • Construction materials
  • Chemical industry
  • Food and beverage
  • Oil industry
  • Paper mill
  • Water / wastewater industry

    • ∎Technical Specifications :

    Type Details
    Supply voltage: 2-wire: 12…36 V DC 4-wire: 85…255 V AC, 20…28 V AC/DC
    Ambient temperature: −30…+70 °C
    Process temperature: −30…+100 °C
    Process pressure: (absolute): 0.5…3 bar
    Measuring range: 0.2…25 m
    Output: 4…20 mA, HART®, relay
    Process connection: 1½", 2" BSP / NPT, flange
    Ingress protection: IP67
    Approvals: ATEX, INMETRO, UKCA Ex
