Flow Indicator and Totalizer

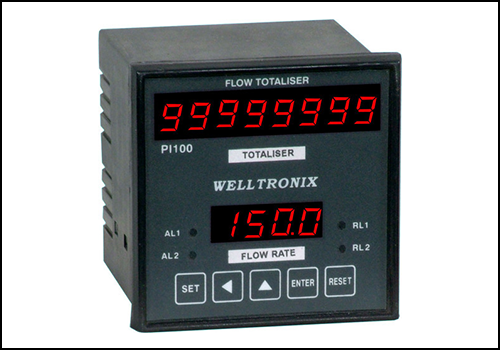

Flow rate indicator cum totalizer (FIT)
∎Technical Specification
INPUT SPECIFICATION:
| Input Types | NPN Proximity PNP Proximity Input Pulse: 5V DC,12V DC,24V DC |
| Resolution | Decimal Point Selectable: 9999999.9/999999.99/99999.999/ 99999999. (For Total Flow) 9999./999.9/99.99/9.999(For Flow rate) |
| Range Limits | 0 to 99999999 For Total Flow 0 to 9999 For Flow Rate |
| Display | Upper: 8 digit, 7 seg, 0.4” Red (For Total Flow) Lower: 4 digit, 7 seg, 0.4” Green (For Flow rate) |
| Keys | SET, SHIFT, BATCH, TOTAL, INC, ENT/RST |
| Size | 96 (H) x 96 (W) x 52 (D) mm |
| Panel Cutout | 92 (H) x 92 (W) mm |
| INDICATION | 8 digit Totalizer & 4 digit Flow Rate |
| Memory | Non Volatile |
| Reset Option | Front Panel Reset Terminal Reset |
OUTPUT SPECIFICATION:
| Relay Output | |
| Relay | 1 nos. |
| Relay Type | 1 C/O (NO-C-NC) |
| Rating | 5A, 230V AC |
| Transmitter supply | |
| Supply Voltage | 24 V DC,30 mA |
| AUXILIARY SUPPLY | |
| Supply voltage | 100 to 270V AC, 50-60Hz |
| Power consumption(VA RATING) | Approx 5 VA @ 230V AC MAX |
| ENVIRONMENT CONDITION | |
| Operating Temp. | 0°C to 55°C |
| Relative Humidity | UP to 95% RH(non-condensing) |
| Protection Level | IP-65 (Front side) As per IS/IEC 60529 : 2001 |
