Gas Detector

Fixed Gas Detector

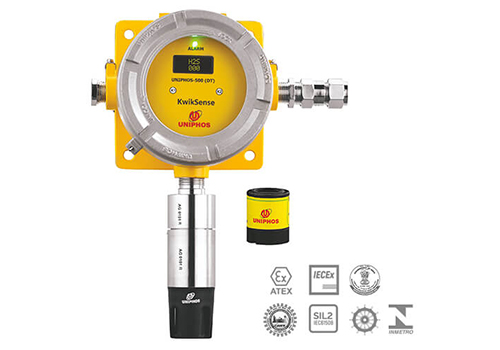

The Uniphos KwikSense Smart Digital Gas Transmitter is a universal gas transmitter capable of detecting a wide range of toxic and flammable gases that may be present in industrial process. Smart Sensor in the transmitter enable us to swap them between any Sensor Technology. It is a field mounted device which is compatible with all Uniphos Smart Gas Sensors and is suitable for the detection and continuous monitoring of hazardous gas leaks in your working site.

Our groundbreaking Smart Sensor Technology, with Transportable Calibration, allows quick sensor changes with pre-calibrated gas sensors, saving time and money. Also, the non-intrusive calibration allows customer to perform calibration in the hazardous areas without opening the transmitters, thus reducing the downtime of calibration.

It comes with an RS-485 MODBUS-RTU digital output signal that can be connected to any suitable control system viz. Uniphos controller, DCS, PLC, etc. It also provides an industry standard 4-20 mA analog output. HART protocol can also be provided in the transmitter.

The KwikSense Smart Digital Gas Transmitter has numerous international certifications including ATEX, IECEx, MED and SIL2.

∎Applications :

  • Oil, Gas and Petroleum Industry
  • Petrochemical Industry
  • Chemical Industry
  • Pharmaceutical Industry
  • Marine Industry
  • Fertilizer Industry
  • Nuclear Industry
  • Iron and Steel Industry
  • ∎Features :

  • A True Universal Transmitter
  • Industry standard 4-20 mA analog output with Digital communication on MODBUS over RS 485
  • Pre-Calibrated Smart Sensor capable of swapping between any sensor technology
  • Non-Intrusive calibration with magnetic wand
  • Certification – ATEX, IECEX, SIL2 ,InMetro, MED
  • 3 configurable on-board potential free relay contact
  • Temperature Class T4: -20o to +85o Celsius
  • Bright OLED display
  • ∎Specifications :

  • Sensor technology: EC/PEL/NDIR/PID/SS
  • Operating Voltage: 18V to 30 VDC
  • System Type: µController based instrument (non intrusive calibration)
  • Display: 8 x 2 OLED Display
  • Sampling type: Diffusion
  • Sensor: Swappable Smart Sensor
  • LED’s: Tri-Colour LED
  • Alarms: Two user settable alarms
  • Output: RS-485 MODBUS/ 4-20mA Current
  • Relays: 3-potential free contacts
  • Load resistance: 600 Ω (max)
  • Power Consumption: < 3 W
  • Enclosure: Flameproof – Cast Alluminium alloy/SS-316
  • Ingress protection: IP66
  • Dimensions: Approx Diameter: 150 mm; Height: 110 mm
  • Wire configuration: 3/4 wires
  • Interface: Calibration & configuration via Non-intrusive magnetic wand
  • Operating Temperature: -20 to 60 ° C
  • Operating Pressure: Ambient + 10 %
  • Operating Humidity: 0-95 %RH (non-condensing)
  • Cable entries: ½” NPT (2 entries)
  • Certifications: ATEX/IECEx + PESO, CMFRI, SIL, MED, InMetro
  • Weight: Cast Aluminium Alloy: 2.5 kg (Approx.) SS 316: 5.2 kg (Approx.)
