pH Meter

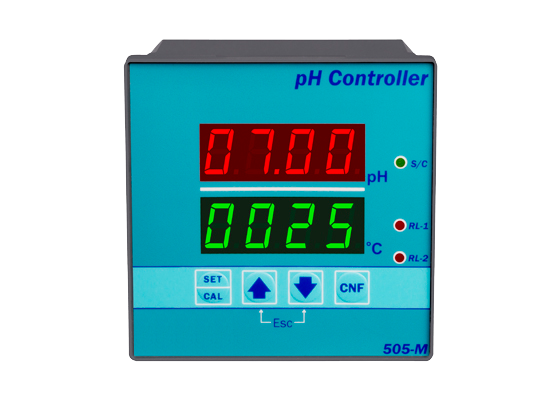

Micro Controller Based pH Indicator / ControllerpH Meter 505-M
∎Technical Specification
| pH Sensor Range | 0 - 14 |
| Accuracy | Better than 0.10pH |
| Temp. Compensation | AUTo / MANUal |
| Display | Dual 4 Digit LED Display ( Upper Display For pH & Lower Display ForTemp.) |
| Input Impedance | 10 Ohms |
| Buffer Calibration | 3 point Auto Calibration 7.0, 4.0 & 9.2 |
| Error Indication | Out Off Buffers Range. (B) Slope Error |
| Control Setting | Two Set Point ( High & Low) |
| Relay Output | 1 OR 2 Relay O/P, (5 Amp. 24V Contacts Free Relay) |
| Environment | 0 to 50 C |
| Supply | 230 V A.C , +/- 10 V, 50 Hzs |
| Enclosure Type | 96 x 96 x 70 mm , Panel Mount Type ( Grey High Quality ABS Plastic Housing) |

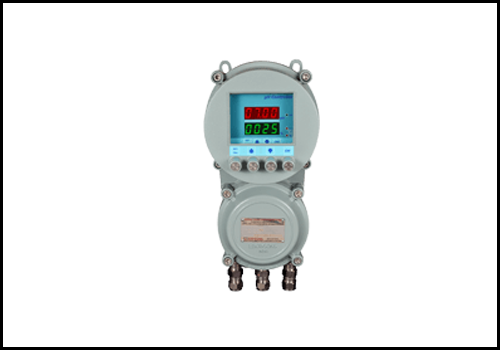

pH Meter 505-FLP
∎Technical Specification
| pH Sensor Range | 0 - 14 |
| Accuracy | 0.1pH +/- 1 digit Of reading |
| Temp. Compensation | 0-150c Manual Or Auto ( PT-100) ( Optional ) |
| Input Impedance | 10 Ohms |
| Calibration | 3 point Auto Calibration 7.0, 4.0 & 9.2 |
| Error Indication | Out Off Buffers Range. (B) Slope Error |
| Control Setting | Two Set Point ( High & Low) |
| Relay Output | One Changeover Relay of Potential Free Contacts Of 5Amp |
| Environment | 5 to 50c |
| Supply | 230v A.C +/- 10%, 50Hzs A.C |
| Enclosure Type | Wall Mount FLP Ex-d IIAB & WP IP-65, With 3 Cable Gland |
