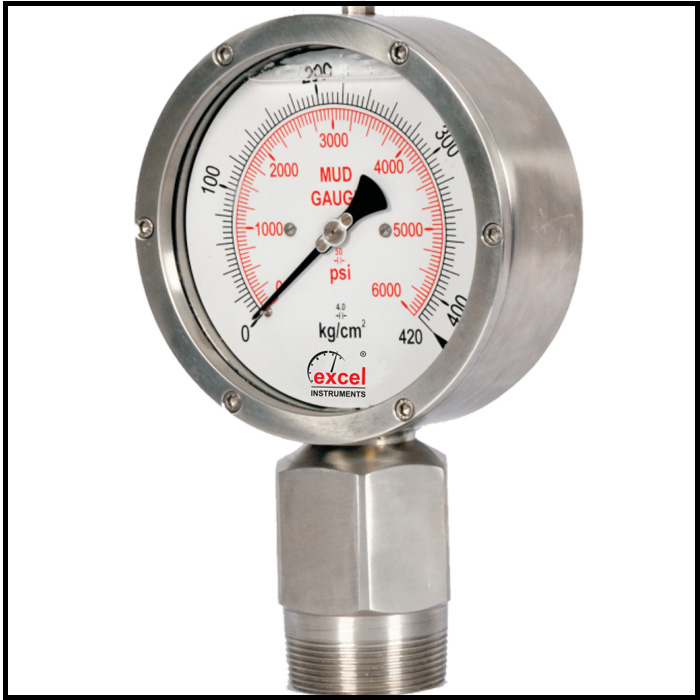

Excel Pressure Guages

Pressure gauges are an essential instrument used by industry measure the pressure in a system as a quality check measure and to ensure the consistency of products. For reasons of safety, pressure gauges monitor fluids, gases, and steam for leaks or a build up of pressure in a system.

Pressure is typically measured in units of force per unit of surface area ( P = F / A). In physical science the symbol for pressure is p and the SI unit for measuring pressure is pascal (symbol: Pa). One pascal is the force of one Newton per square meter acting perpendicular on a surface.

∎ Specification

Connection 3/8 Inch And 1/2 Inch BSP / NPT (M)
Brand Excel
Wetted Parts SS 304 / SS 316
Dial Size 150mm
Accuracy 1 % of Full Span

∎ Application

  • Engine compressors
  • Diesel engines
  • Equipments
  • Hydraulic
  • Hydro-cleaning machines
  • Refrigerating plants and gaseous / liquid media that will not obstruct the pressure system.

∎ Features

  • External zero adjustment (optional)
  • Stainless steel case & measuring system
  • Socket directly welded to case
  • Dry and liquid filled version
  • Standard followed EN 837-1 (for NS 100, 150 & 250 mm)
  • CE marking (as per PED 97/23/EC) (for NS 100 mm & 150 mm)

More Images
