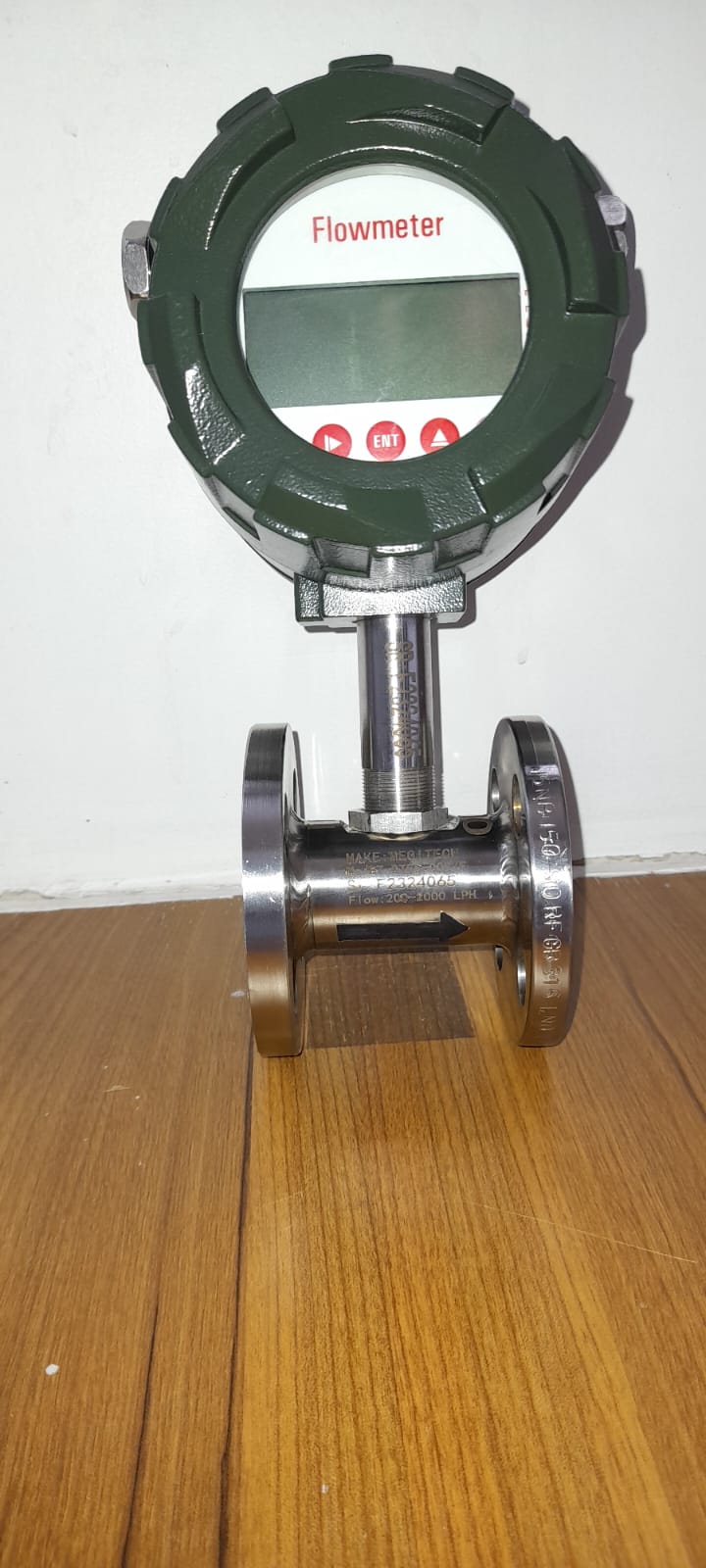

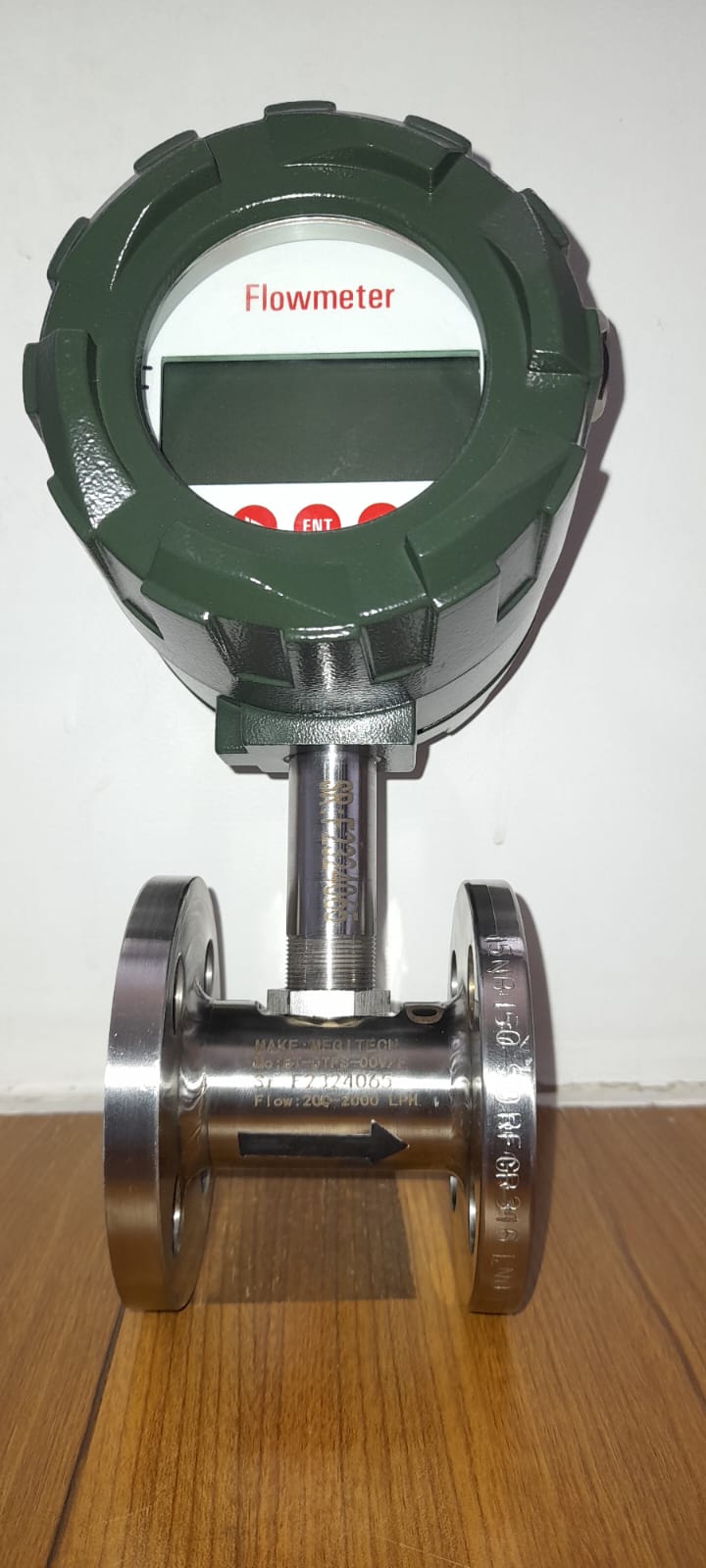

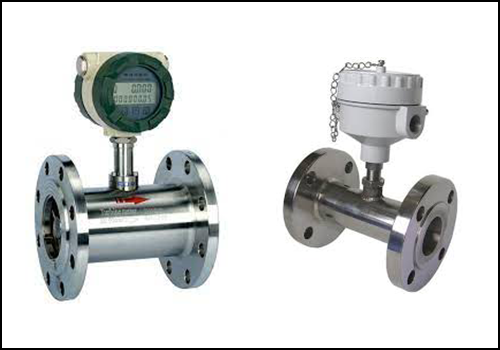

Turbin Flow Meter

for Ro Water/Non Conductive Water

∎Technical Specification

Material of construction S.S-316
Enclosure S.S-316
Rotor S.S-410
Shaft Hard Stainless Steel-316 with carbon bush
Accuracy ± 1% FSD
Repeatability 0.2%
Output Pulse NPN / PNP
Maximum working pressure 6 MPa (60 Bar)
Fluid & Ambient temperature (-20 to 120) Deg. C
Connection Thread (M/F) or flange
